Progressive blur

Blur whose radius ramps across the node instead of being uniform. A plain blur is a constant; this interpolates from sharp to radius between start and end along the ramp, which is what makes content appear to dissolve into softness rather than simply being out of focus.

In mode: 'backdrop' it is the frosted panel with a falloff — the translucent bar whose blur fades out at its edge instead of stopping at a hard line. That is the case background blur cannot express, and the reason this effect exists.

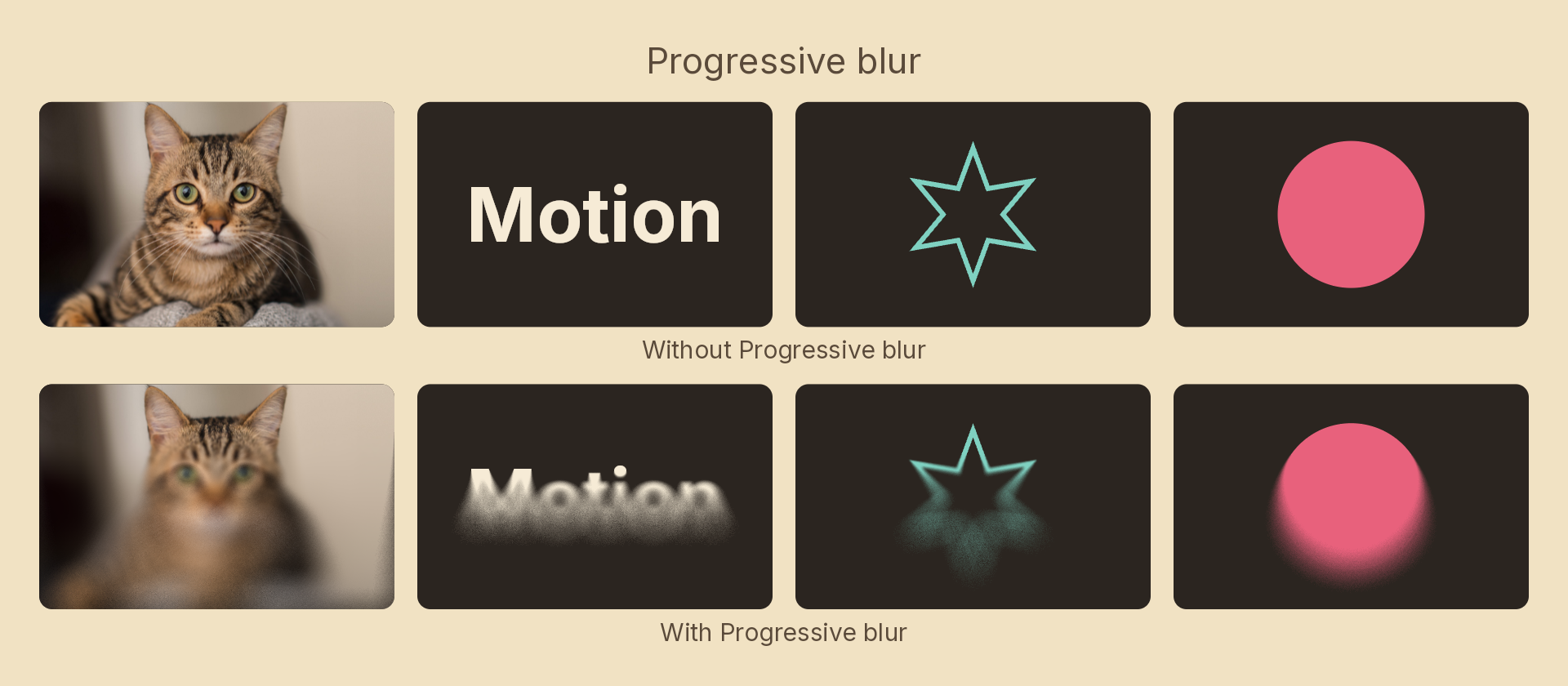

Progressive blur effect demo

Usage

import { Effects } from 'motion-script';

// Sharp at the top, dissolving downward
<Image src="hero.jpg" effects={Effects.progressiveBlur({ radius: 32, angle: 90 })} />

// Sharp centre, soft surround — a cheap depth-of-field
<Image src="portrait.jpg" effects={Effects.progressiveBlur({ radius: 24, shape: 'radial', start: 0.3 })} />

// A frosted bar whose blur fades out at its bottom edge
<Rect fill="white/10" effects={Effects.progressiveBlur({ radius: 40, angle: 90, end: 0.8, mode: 'backdrop' })} />

Props

PropTypeDefaultDescription
type'progressiveBlur'–Effect identifier
radiusnumber24Blur spread in px at the far end of the ramp. 0 = off
shape'linear' | 'radial''linear'How the ramp is laid out
startnumber00–1 position along the ramp where the blur starts building
endnumber10–1 position where it reaches radius
anglenumber90Ramp direction in degrees; 0 = left-to-right. 'linear' only
center{ x: number; y: number }{ x: 0.5, y: 0.5 }Ramp origin in 0–1 layer coordinates. 'radial' only
samplesnumber20Taps averaged at full radius, 2–32. Higher is smoother and slower
mode'foreground' | 'backdrop''foreground'Blur the node's own content, or the backdrop beneath it

Ramp shapes

  • 'linear' — the ramp runs along angle, so the blur builds from one edge toward the other. The gradient strip under a toolbar, or over the bottom of a hero image.
  • 'radial' — the ramp runs outward from center, so the middle stays sharp and the surround softens.

Cost

Cost scales with samples, and they are spent on the widest part of the ramp — pixels below start return the source untouched without sampling at all. The taps sit on a golden-angle spiral rotated by a per-pixel hashed angle, which trades the structured ghosting a low tap count would otherwise produce for fine noise the eye accepts as blur. If a large radius still looks grainy, raise samples.

samples snaps rather than interpolating in a tween, because the tap count is baked into the compiled shader — tweening it would compile a new program every frame.

Animating

import { createScene, Image, Effects, easeOut } from 'motion-script';

export default createScene(function* (stage) {
  const hero = stage.add(<Image src="hero.jpg" width="fill" height="fill" />);

  hero.set({ effects: Effects.progressiveBlur(0) });
  yield* hero.to({
    effects: Effects.progressiveBlur({ radius: 40, angle: 90, start: 0.2 }),
  }, 1, easeOut('quad'));
});

Sliding start and end together moves the focal band across the node without changing how soft it gets.
