God Rays

Crepuscular rays: bright areas smeared outward from a point and screened back over the source, so light appears to stream past whatever occludes it.

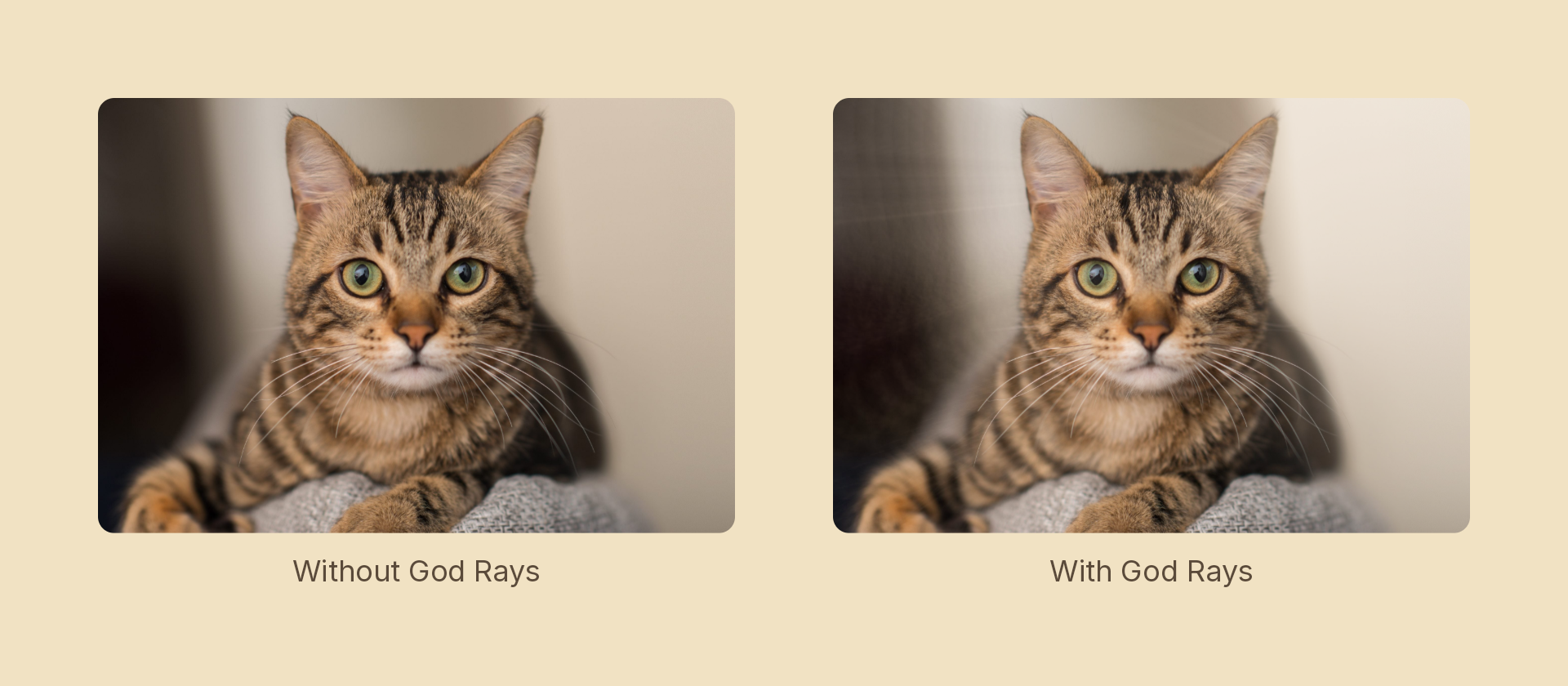

God rays effect demo

Usage

import { Effects } from 'motion-script';

// Default: light from the centre
<Rect effects={Effects.godRays()} />

// Scalar shorthand sets the intensity
<Rect effects={Effects.godRays(2)} />

// A sun in the upper left, reaching further
<Rect effects={Effects.godRays({ intensity: 2.4, center: { x: 0.25, y: 0.15 }, length: 0.8 })} />

Props

Prop	Type	Default	Description
`type`	`'godRays'`	–	Effect identifier
`intensity`	`number`	`1`	Additive multiplier for the ray pass. `0` is off
`threshold`	`number`	`0.6`	0–1 luminance cutoff — only brighter pixels cast rays
`length`	`number`	`0.6`	How far rays reach, as a fraction of the distance to `center`
`center`	`Vector2`	`{ x: 0.5, y: 0.5 }`	Light source in 0–1 layer coordinates
`decay`	`number`	`0.96`	Per-step falloff. Below `1` the rays fade with distance
`samples`	`number`	`32`	Taps marched per pixel, clamped to 4–48
`mode`	`'foreground' \| 'backdrop'`	`'foreground'`	`'backdrop'` lights the content beneath the node

The subject matters

More than for most effects. Rays are only visible where something bright is partly blocked — a sun behind a branch, a window behind a frame, a light behind lettering. On a flat, evenly-lit photograph there is nothing for light to stream past, and the result is a gentle overall brightening rather than beams.

Versus radial blur

They look related and are not interchangeable:

radialBlur in 'zoom' style smears everything from a point, so the occluder softens along with the light.
godRays smears only what clears threshold, and screens it over the untouched source — so the occluder stays sharp and only the light travels.

That thresholding is why this needs a shader scope while streak doesn't.

Animating

intensity, threshold, length, center and decay all interpolate; samples snaps at the midpoint, being a quality knob rather than a look.

import { createScene, createRef, Rect, Effects, easeInOut } from 'motion-script';

export default createScene(function* (stage) {
  const card = createRef<Rect>();
  stage.add(<Rect ref={card} effects={Effects.godRays(0)} />);

  yield* card().to({ effects: Effects.godRays(2.4) }, 1.2, easeInOut('quad'));
});

Each pixel's march starts at a randomised offset. Without that, sample positions line up into concentric arcs and the rays band visibly — no affordable tap count hides it, and the dither costs one hash.
