Kaleidoscope

Folds the content into segments mirrored wedges around a point, so one slice of the source is repeated around a circle.

Only the wedge starting at angle is ever read; every other segment is that same wedge reflected or rotated into place. That is why rotating angle animates so well — the pattern stays locked while different source material sweeps through the wedge, which is not what rotating the node does.

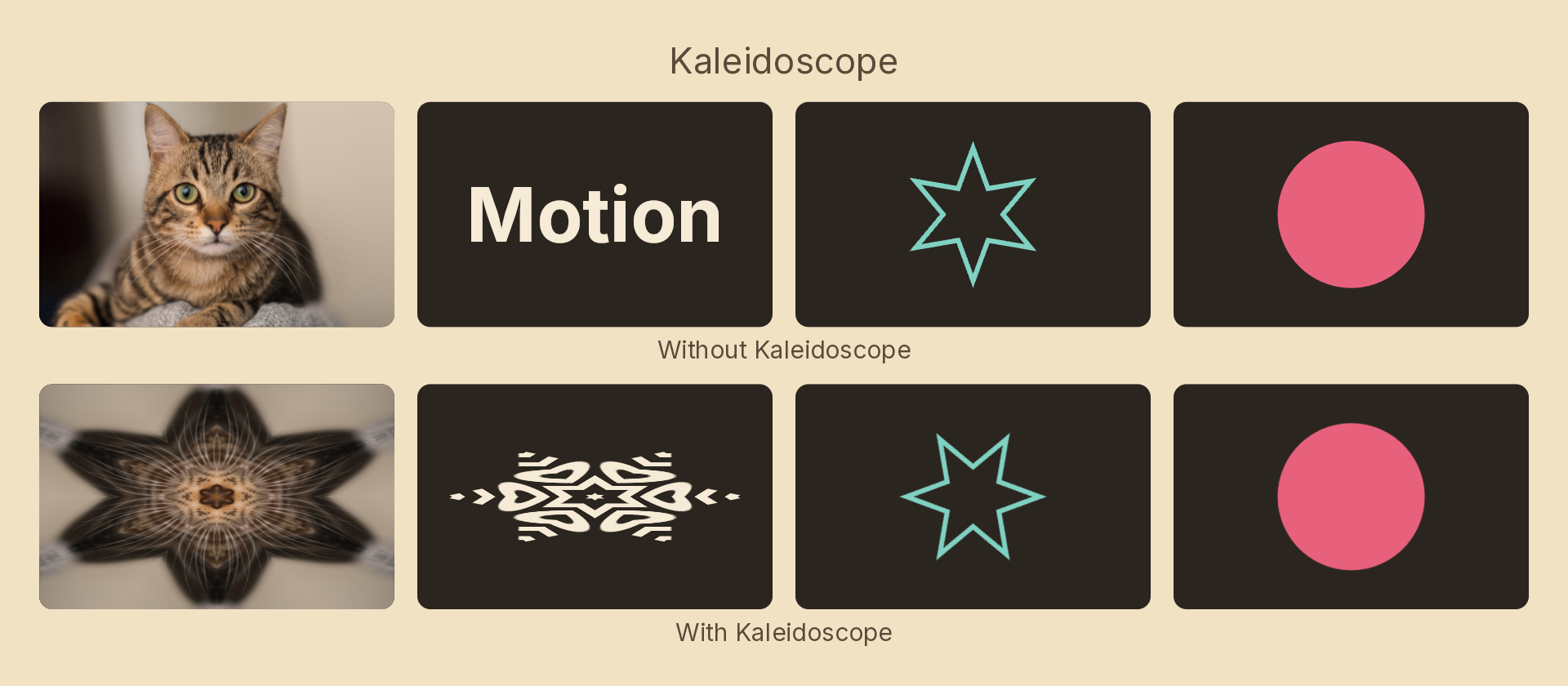

Kaleidoscope effect demo

Usage

import { Effects } from 'motion-script';

// The familiar six-fold snowflake
<Image src="photo.jpg" effects={Effects.kaleidoscope(6)} />

// Off-centre, rotated, sampling further out
<Image src="photo.jpg" effects={Effects.kaleidoscope({ segments: 8, angle: 30, offset: 0.2 })} />

Props

PropTypeDefaultDescription
type'kaleidoscope'–Effect identifier
segmentsnumber6Number of mirrored wedges around the circle. Below 2 is a no-op
anglenumber0Rotation of the wedge pattern in degrees
center{ x: number; y: number }{ x: 0.5, y: 0.5 }Fold origin in 0–1 layer coordinates
offsetnumber0Radial offset of the sampled wedge, as a fraction of the half-extent
amountnumber10–1 blend from the original content to the fully folded pattern
mode'foreground' | 'backdrop''foreground'Fold the node's own content, or the backdrop beneath it

Mirroring rather than merely repeating is what makes the seams continuous — a plain repeat leaves a hard edge at every wedge boundary, because the two sides sample opposite ends of the slice.

Animating

segments is discrete and snaps at the midpoint of a tween: a fractional wedge cannot tile the circle, so it would tear at the seam. Use amount to ramp the effect on, and angle to animate it once it is on.

import { createScene, Image, Effects, easeOut, linear } from 'motion-script';

export default createScene(function* (stage) {
  const photo = stage.add(<Image src="photo.jpg" width="fill" height="fill" />);

  // Fold it in…
  photo.set({ effects: Effects.kaleidoscope({ segments: 6, amount: 0 }) });
  yield* photo.to({ effects: Effects.kaleidoscope({ segments: 6, amount: 1 }) }, 0.8, easeOut('quad'));

  // …then sweep the source through the wedge.
  yield* photo.to({ effects: Effects.kaleidoscope({ segments: 6, amount: 1, angle: 360 }) }, 6, linear);
});

offset pulls different source material into the pattern without moving the node, so tweening it and angle together gives a much richer sweep than either alone.
