Bit Crush

Reduces colour depth — either to a number of bits per channel, or by snapping every pixel to its nearest entry in a fixed hardware palette.

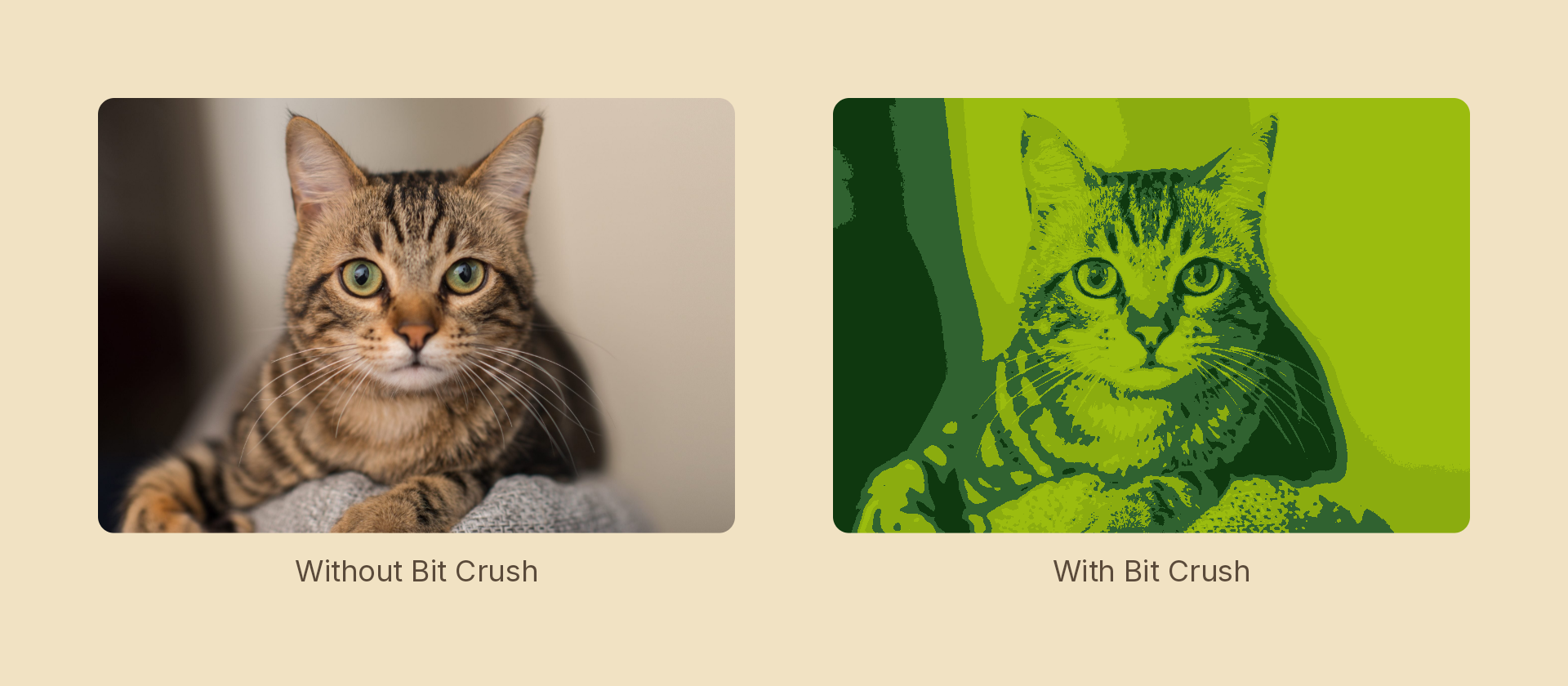

Bit crush effect demo

Usage

import { Effects } from 'motion-script';

// Default: 3 bits per channel
<Image src={'./photo.jpg'} effects={Effects.bitCrush()} />

// Scalar shorthand sets the bit depth
<Image src={'./photo.jpg'} effects={Effects.bitCrush(1)} />

// Game Boy
<Image src={'./photo.jpg'} effects={Effects.bitCrush({ palette: 'gameboy' })} />

// Half-strength CGA
<Image src={'./photo.jpg'} effects={Effects.bitCrush({ palette: 'cga', amount: 0.5 })} />

Props

Prop	Type	Default	Description
`type`	`'bitCrush'`	–	Effect identifier
`bits`	`number`	`3`	Bits per channel when `palette` is `'none'` (1–8)
`palette`	`'none' \| 'gameboy' \| 'cga' \| 'nes'`	`'none'`	Fixed palette to snap to
`amount`	`number`	`1`	0–1 blend between the original colour and the crushed one
`mode`	`'foreground' \| 'backdrop'`	`'foreground'`	`'backdrop'` crushes the content beneath the node

The palettes

Palette	Colours
`'gameboy'`	The DMG's four greens
`'cga'`	IBM CGA palette 1, high intensity — black, cyan, magenta, white
`'nes'`	A representative 16-colour cut of the NES master palette

These are the actual historical colours, not evenly-spaced approximations. That is the whole point of a palette over posterize: the surviving colours are uneven and specific, which is why the result looks like a Game Boy rather than merely low-colour.

Animating

bits and amount interpolate; palette snaps at the midpoint — a halfway palette is meaningless. To fade into a palette, hold the palette fixed and ramp amount:

import { createScene, createRef, Image, Effects, easeInOut } from 'motion-script';

export default createScene(function* (stage) {
  const photo = createRef<Image>();
  stage.add(<Image ref={photo} src={'./photo.jpg'} effects={Effects.bitCrush({ palette: 'gameboy', amount: 0 })} />);

  yield* photo().to({ effects: Effects.bitCrush({ palette: 'gameboy', amount: 1 }) }, 1.2, easeInOut('quad'));
});

Stacking with other effects

// Handheld: pixelate to the panel's resolution, dither, then cut to the palette
<Image
  src={'./photo.jpg'}
  effects={Effects.pixelate(160).dither({ levels: 4, matrix: 4 }).bitCrush({ palette: 'gameboy' })}
/>

Pairing with dither is the classic move: the dither carries the quantization error as a pattern, so gradients survive a palette that has no room for them.
