Directional Blur

Smears the node's content along a single axis, producing a linear, motion-blur-style streak. Unlike Motion Blur, the direction and length are authored manually rather than derived from the node's velocity.

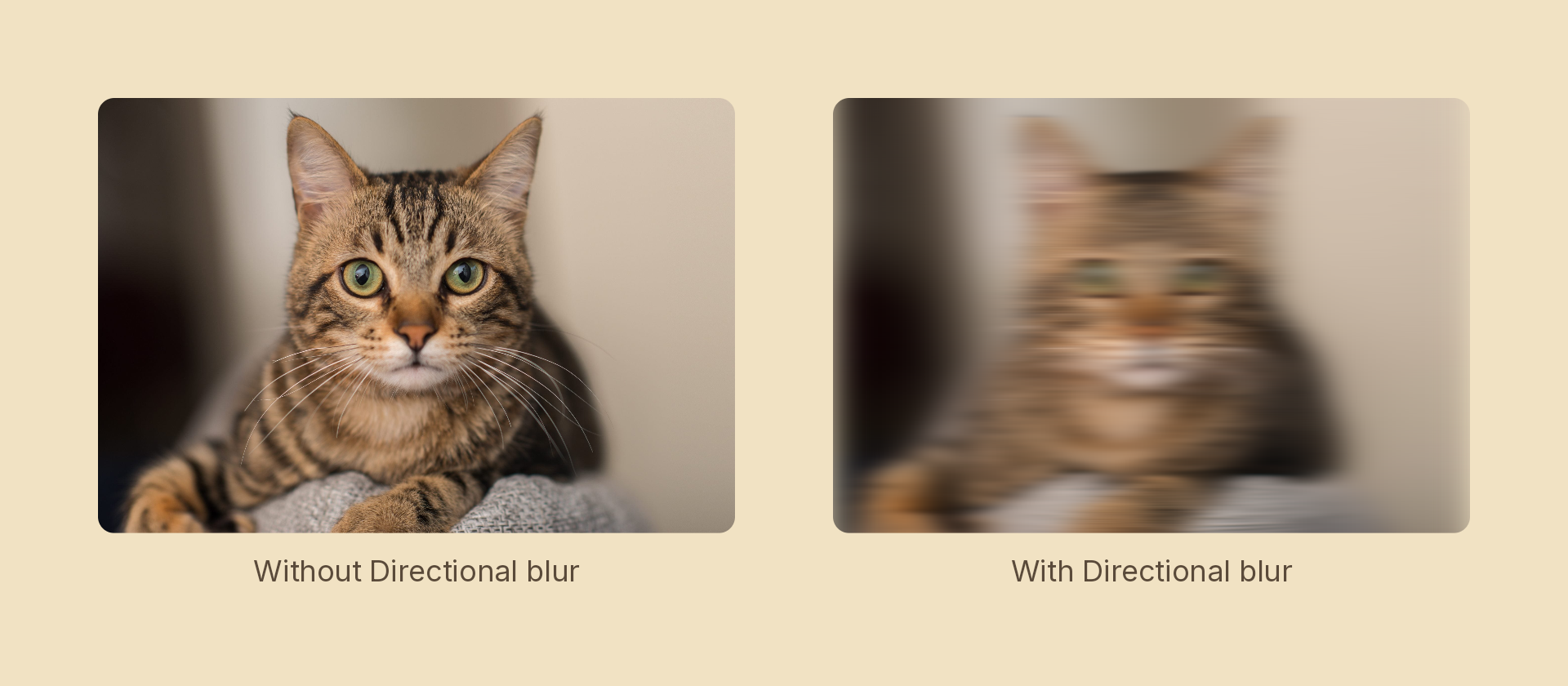

Directional blur effect demo

Usage

import { Effects } from '@motion-script/core';

// Horizontal smear, 40px
<Rect effects={Effects.directionalBlur(40)} />

// Diagonal smear
<Rect effects={Effects.directionalBlur({ radius: 20, angle: 45 })} />

// Raw object
<Rect effects={[{ type: 'directionalBlur', radius: 40, angle: 0 }]} />

Props

Prop	Type	Default	Description
`type`	`'directionalBlur'`	–	Effect identifier
`radius`	`number`	–	Smear length in pixels
`angle`	`number`	`0`	Smear angle in degrees (`0` = horizontal, `90` = vertical)
`mode`	`'foreground' \| 'backdrop'`	`'foreground'`	`'backdrop'` smears the content beneath the node, clipped to its silhouette, leaving the node's own content untouched

Animating

Animate radius to create a speed-up or slow-down effect:

import { createScene, Rect, Effects, tween, lerpNumber, easeIn } from '@motion-script/core';

export default createScene(function* (stage) {
  const card = new Rect({ width: 500, height: 300, fill: 'royalblue' });
  card.set({ effects: Effects.directionalBlur(0) });
  stage.add(card);

  // Blur out to the right
  yield* tween(0.6, (t) => {
    card.set({ effects: Effects.directionalBlur(lerpNumber(0, 60, easeIn(t))) });
  });
});

Stacking with other effects

// Motion-look: directional blur + chromatic aberration
<Rect effects={Effects.directionalBlur(30).chromaticAberration(6, 0)} />
