MotionScript

Bulge

Applies a barrel or pincushion lens distortion to the node's own content. A positive strength magnifies the centre and pins the edges (barrel); a negative value pinches the centre inward (pincushion).

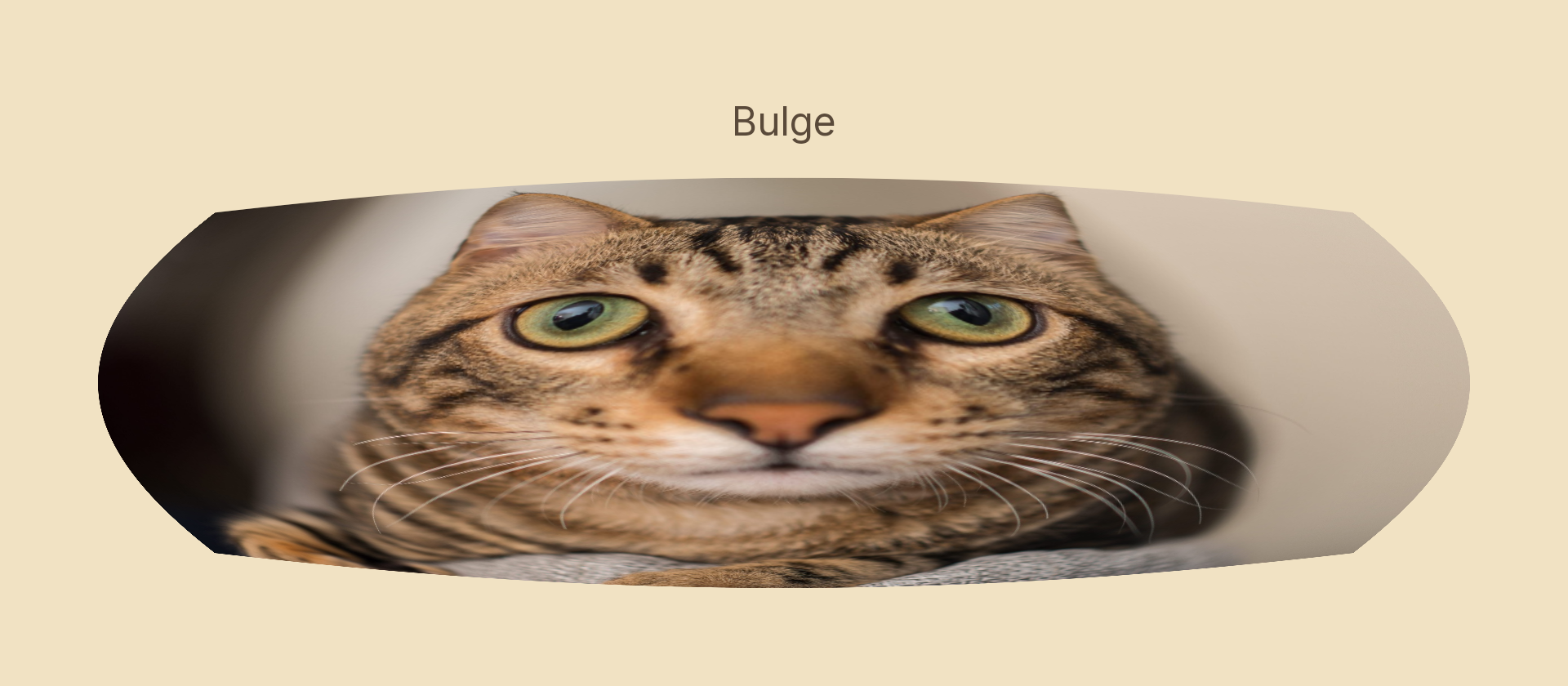

Bulge effect demo

Usage

import { Effects } from '@motion-script/core';

// Barrel distortion
<Rect effects={Effects.bulge(0.6)} />

// Pincushion distortion
<Rect effects={Effects.bulge(-0.4)} />

// Raw object
<Rect effects={[{ type: 'bulge', strength: 0.6 }]} />

Props

PropTypeDefaultDescription
type'bulge'–Effect identifier
strengthnumber–Distortion amount: positive = barrel (centre magnified), negative = pincushion (centre pinched). Typical range −1 to 1
center{ x: number; y: number }{ x: 0.5, y: 0.5 }Lens centre in 0–1 layer coordinates

Animating

import { createScene, Rect, Effects, tween, lerpNumber, easeInOut } from '@motion-script/core';

export default createScene(function* (stage) {
  const card = new Rect({ width: 400, height: 400, fill: '#4f46e5' });
  card.set({ effects: Effects.bulge(0) });
  stage.add(card);

  yield* tween(1.2, (t) => {
    card.set({ effects: Effects.bulge(lerpNumber(0, 0.8, easeInOut(t))) });
  });
});

Stacking with other effects

// Bulge with chromatic aberration for a lens-like look
<Rect effects={Effects.bulge(0.5).chromaticAberration(4)} />
